ABB Freelance
octoplant supports the management of ABB Freelance projects and enables the cyclical monitoring of devices configured with this development environment.

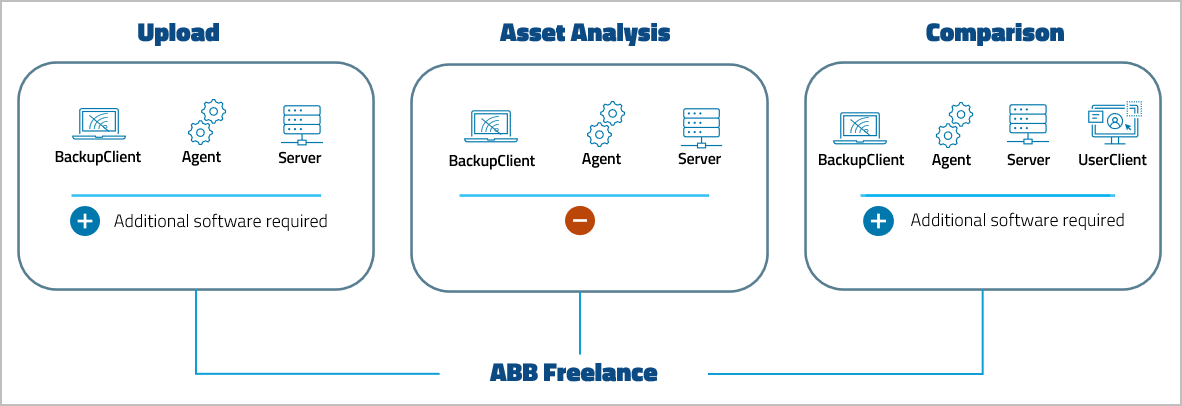

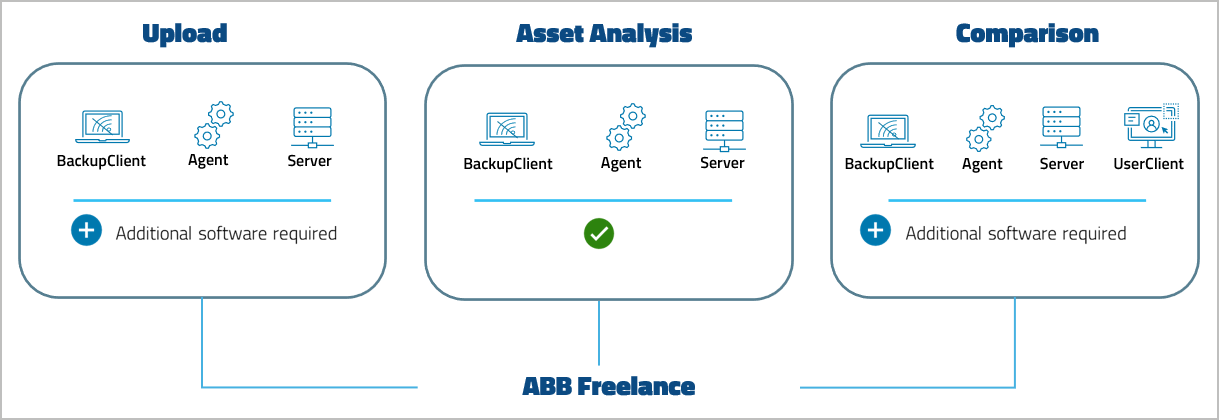

Device Support Level
Key features
Workflow
Supported versions
| ABB Freelance 800F Control Builder F | V5.2 | V7.2 | V8.1 | V8.2 | V9.1 | V9.2 |
|---|---|---|---|---|---|---|
| octoplant 101 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Supported devices
- All controllers supported by Freelance 800F
Requirements
- To carry out uploads and comparisons, a compatible version of the editor must be installed on the same computer on which the server or an agent is running.
- To open the project with the editor, the path of the client archive must not contain square brackets ([]).
Configuration
To get the basic workflow for intergrating the device, open General workflow.
Device-specific settings for this device, such as job configuration, can be found on the following pages:
