Allen-Bradley Stratix switches
octoplant supports the management of Allen-Bradley Stratix projects and enables the automatic creation of backups as well as the cyclical monitoring of the switches.
Device support level
Key features and functions
| Version | Backup | ||
|---|---|---|---|
| Project lifecycle |  | Upload strategy: Automated upload | |
| Compare: SmartCompare |  | Compare: SmartCompare | |
| Restorable version | | Restorable backup | |

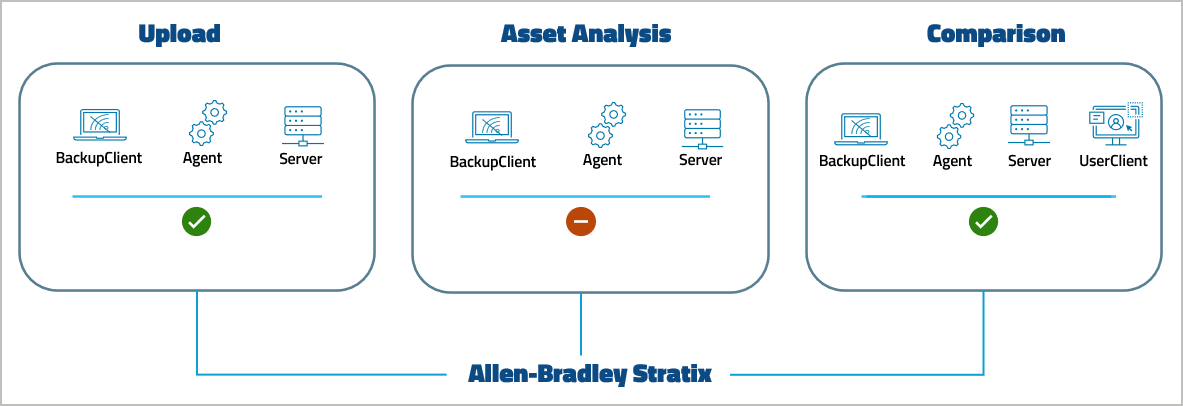

Software version compatibility
| Allen-Bradley Stratix | From octoplant version |
|---|---|
| 5700 Series | 101 |
Ports & protocols
- To execute the job, the necessary outgoing and incoming ports must be enabled on the server, the switch, and all intermediate network devices. By default, these include the SSH and TFTP ports.
- Only one switch at a time can be accessed via the TFTP port. To back up multiple switches simultaneously, configure a unique TFTP port for each switch. You can increase the maximum number of parallel uploads in the
Upload\AgentStation.inifile.
Configuration
To get the basic workflow for integrating the device, open General workflow.
Device-specific settings for this device, such as job configuration, can be found on the following pages:
