Atlas Copco nutrunner controls

octoplant supports the management of Atlas Copco nutrunner controllers and enables the automatic creation of backups and cyclical monitoring of the controllers.

octoplant supports two types of Atlas Copco tightening systems:

  • Power Focus 4000 system: The Power Focus 4000 is designed for portable tightening systems.
  • Power MACS 4000 system: The Power MACS 4000 is an advanced process control and monitoring system for fixtured applications.

Device Support Level

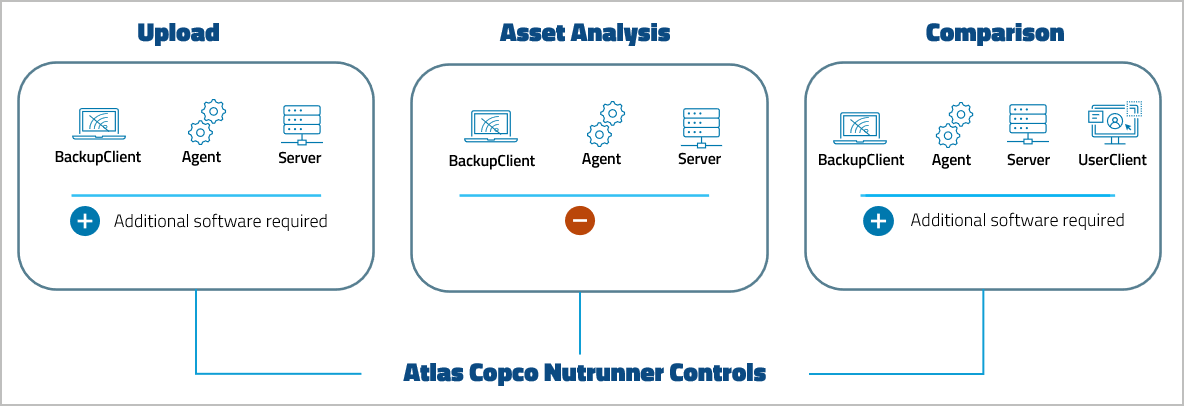

Figure: Device Support Level Atlas Copco

Key features

Figure: Atlas Copco Key features

Workflow

Figure: Workflow Atlas Copco

Supported versions

From Version Power Focus 4000 Power MACS 4000
octoplant 101 ✓
octoplant 101.2.5 ✓ ✓

Requirements

  • Power Focus 4000 system

    • To carry out uploads and comparisons, a compatible version of the editor must be installed on the same computer on which the server or an agent is running.
    • The upload is carried out using the commandline tool ttpf.exe (ToolsTalk Power Focus 4000) from Atlas Copco. This tool must be installed, licensed and running on the computer (server or agent) carrying out the upload.

  • Power MACS 4000 system

    • To carry out uploads, a compatible version of the editor must be installed on the same computer on which the server or an agent is running.

    • The upload is carried out using the commandline tool PowerMacs4000.exe (ToolsTalk Power MACS 4000) from Atlas Copco. This tool must be installed, licensed and running on the computer (server or agent) carrying out the upload.

  • To perform uploads for Atlas Copco nutrunner controls, the executing service must run under a specific user account that is a member of the Administrators group.
    Uploads will fail if the VDog MasterService, VDog UploadAgent, or VDog CompareAgent services are running under the LocalSystem account.

  • For Atlas Copco nutrunner controls, you must launch either the agent or the VDog MasterService (depending on which one is used) as an application.

    For detailed instructions, see Starting agents and VDog MasterService as applications

Configuration

To get the basic workflow for intergrating the device, open General workflow.

Device-specific settings for this device, such as job configuration, can be found on the following pages:
