AVEVA (formerly Wonderware) System Platform

octoplant supports the management of AVEVA System Platform galaxies and enables the automatic creation of backups and the cyclical monitoring of galaxies.

Info

AVEVA used to be called Wonderware. For technical reasons, the original name is still used in octoplant. There are two component types: Aveva System Platform and Wonderware System Platform. Depending on your version, you can use either component type.

Device Support Level

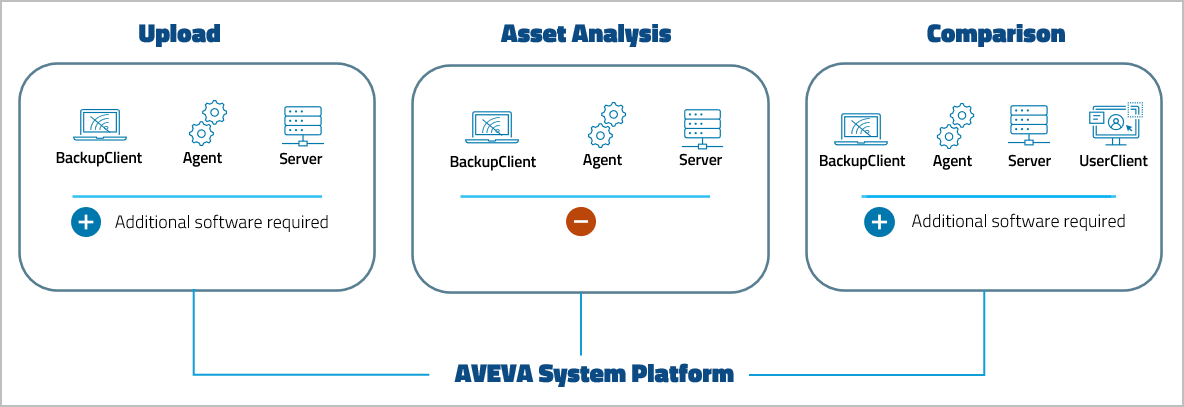

Figure: Device Support Level AVEVA System Platform

Key features

Figure: AVEVA System Platform Key features

Workflow

Figure: Workflow AVEVA System Platform

Supported versions

AVEVA (formerly Wonderware) System Platform 2012 R2 2014 R2 SP1 2017 SP1 Update3 2017 SP3 2020 R2 2023 2023 R2
octoplant 101 ✓ ✓ ✓ ✓ ✓
octoplant 101.3 ✓ ✓ ✓ ✓ ✓ ✓
octoplant 105 ✓ ✓ ✓ ✓ ✓ ✓ ✓

Requirements

  • To carry out uploads and comparisons, a compatible version of the editor must be installed on the same computer where the server or an agent is running.

  • Complete backup (CAB)

    • Consists of one file containing all objects. Example: {Galaxy name}.cab.
    • Backup and full restoration (disaster recovery) of the complete Galaxy are possible.
    • An MS SQL Server is required for a comparison. The MS SQL Server must be the same version as the one used by the GRNode.
    • To execute a job, both Bootstrap and Archestra IDE must be installed and licensed.
    • The IDE (including GRAccess) is required for the upload.

  • Exported objects (AAPKG)

    • Only selected objects are included.
    • Comparison is possible, but no upload can be configured.
    • No additional software is required for comparisons.
    • The IDE (including GRAccess) is required for automatic exports during versioning.

Configuration

To get the basic workflow for intergrating the device, open General workflow.

Device-specific settings for this device, such as job configuration, can be found on the following pages:
