BECKHOFF TwinCAT V2

TwinCAT is a software suite from BECKHOFF Automation GmbH & Co. Kg. With the BECKHOFF TwinCAT software system, almost any compatible PC can be used as a PLC and CNC controller as well as an operating device.

Info

octoplant supports both BECKHOFF TwinCAT V2 and V3. The instructions in this tutorial only refer to BECKHOFF TwinCAT V2, V3 is covered in a separate tutorial.

Device Support Level

Figure: Device Support Level BECKHOFF TwinCAT

Key features

Figure: BECKHOFF TwinCAT Key features

Other features

  • Asset inventory support

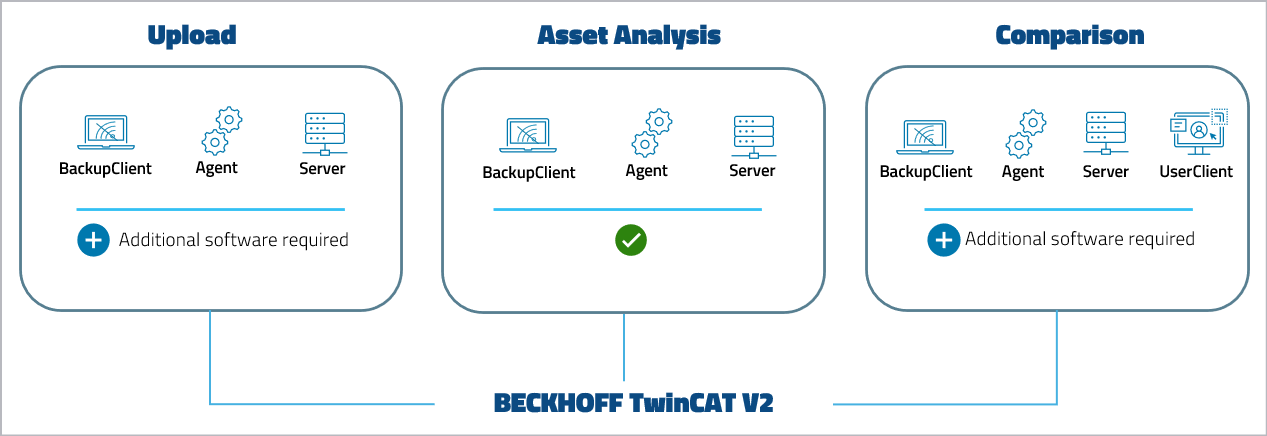

Workflow

Figure: Workflow BECKHOFF TwinCAT

Supported versions

BECKHOFF TwinCAT V2.X
octoplant 101 ✓

Requirements

  • BECKHOFF TwinCAT V2 and V3 projects cannot be integrated simultaneously in one TwinCAT component.
  • To carry out uploads and comparisons, a compatible version of the editor must be installed on the same computer on which the server or an agent is running.

Configuration

To get the basic workflow for intergrating the device, open General workflow.

Device-specific settings for this device, such as job configuration, can be found on the following pages:
