Configuring CODESYS comparisons

For CODESYS V2.X and CODESYS V3.X projects, you can configure passwords for project comparisons. If a project is password-protected, you must enter the password in the comparison settings; otherwise, SmartCompare cannot be executed.

  1. Open the Comparison configuration dialog.

    Example for CODESYS V.2:

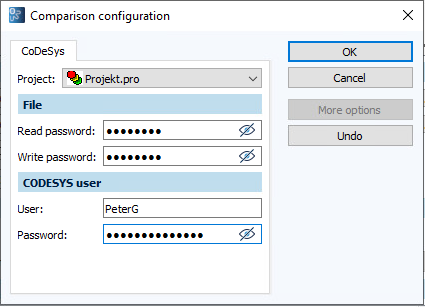

    Figure: Comparison configuration dialog, CODESYS V2

  2. If there are several projects in a component, select the corresponding project from the dropdown menu.

  3. In the File area, enter the passwords for reading and writing.
  4. In the CODESYS user area, enter your credentials.
  5. Select OK to confirm.
