CODESYS
octoplant supports the management of CODESYS projects and enables the cyclical monitoring of devices that have been configured with this development environment.

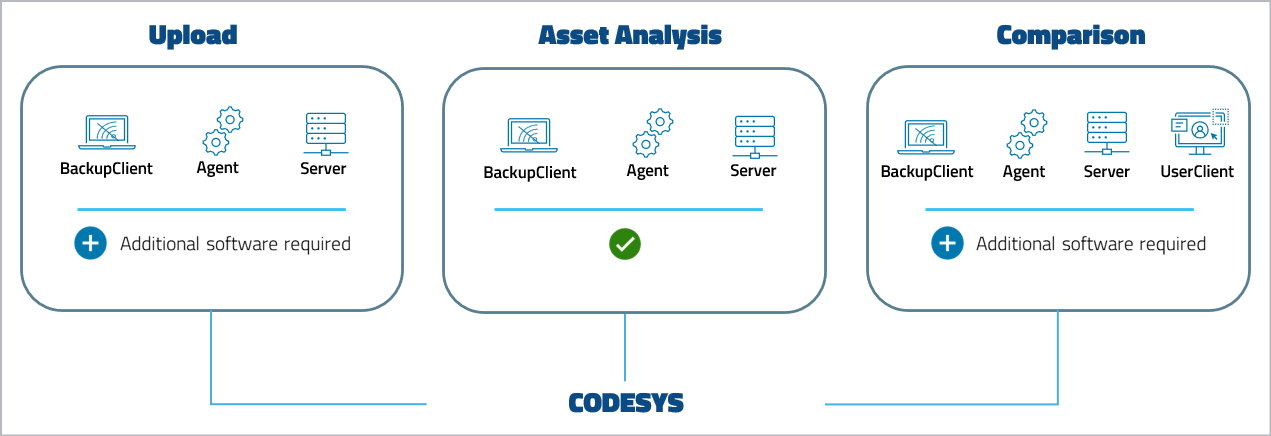

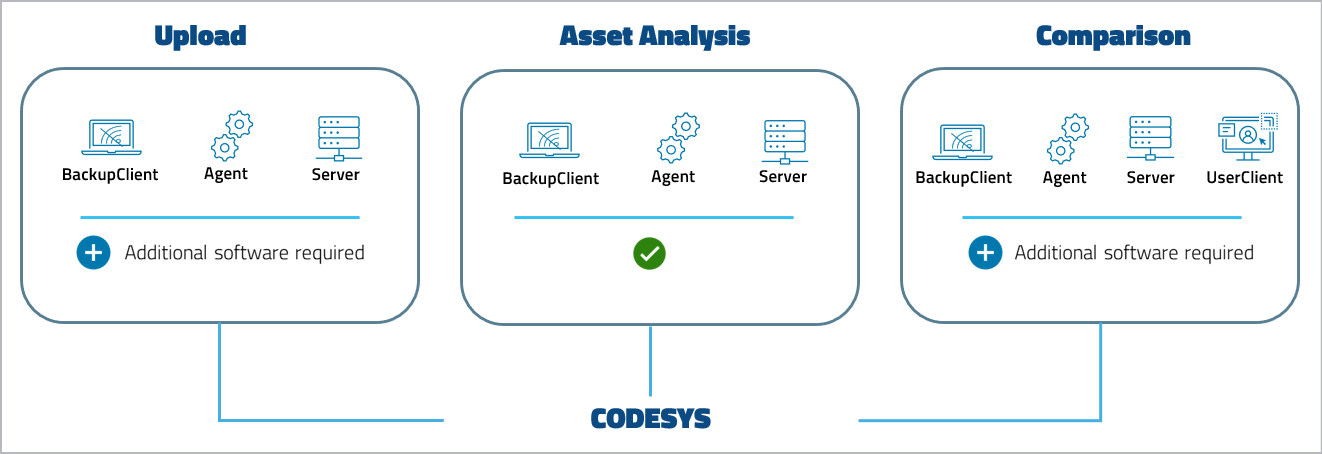

Device support level
Key features and functions
Software compatibility
| CODESYS | V 2.1 | V 2.3 | V 3.5 SP 9 | V 3.5 SP 10 - SP 15 | V 3.5 SP 16-SP 18 |
|---|---|---|---|---|---|
| octoplant 101 | ✓ | ✓ | ✓ | ✓ | |
| octoplant 101.1.0 | ✓ | ✓ | ✓ | ✓ | ✓ |
Supported editors
The correct editor is automatically determined for the listed manufacturers with the following search sequence (*CODESYS V2.X only):
- CODESYS
- SoMachine (CODESYS V3)
- CPS21 (Bosch)*
- TwinCat (Beckhoff)** TwinCAT V3 contains its own editor.
- MOVITOOLS® MotionStudio (SEW-EURODRIVE)*
- ELAU (Schneider Electric)
- Indralogic (Bosch Rexroth)*
- EATON
The search sequence can be changed using a script.
Requirements
- V2.* and V3.* projects may not be integrated simultaneously in one CODESYS component.
- Encrypted CODESYS projects cannot be integrated.
- To carry out uploads and comparisons, a compatible version of the editor must be installed on the same computer on which the server or an agent is running.
- The upload is carried out using the CODESYS PLC Handler.
- For CODESYS projects, detailed comparison is only possible if the Upload boot project option is enabled. If this option is not enabled, only a limited comparison can be performed.
Restrictions
CODESYS V2.X:
* For technical reasons, project information and device properties are not recognized.
CODESYS V3.X:
- Visualization and user administration are not supported.
Configuration
To get the basic workflow for integrating the device, open General workflow.
Device-specific settings for this device, such as job configuration, can be found on the following pages:
