Cognex In-Sight
octoplant supports the management of machine vision sensors and systems from the Cognex In-Sight product line and enables the automatic creation of backups and cyclical monitoring of devices.

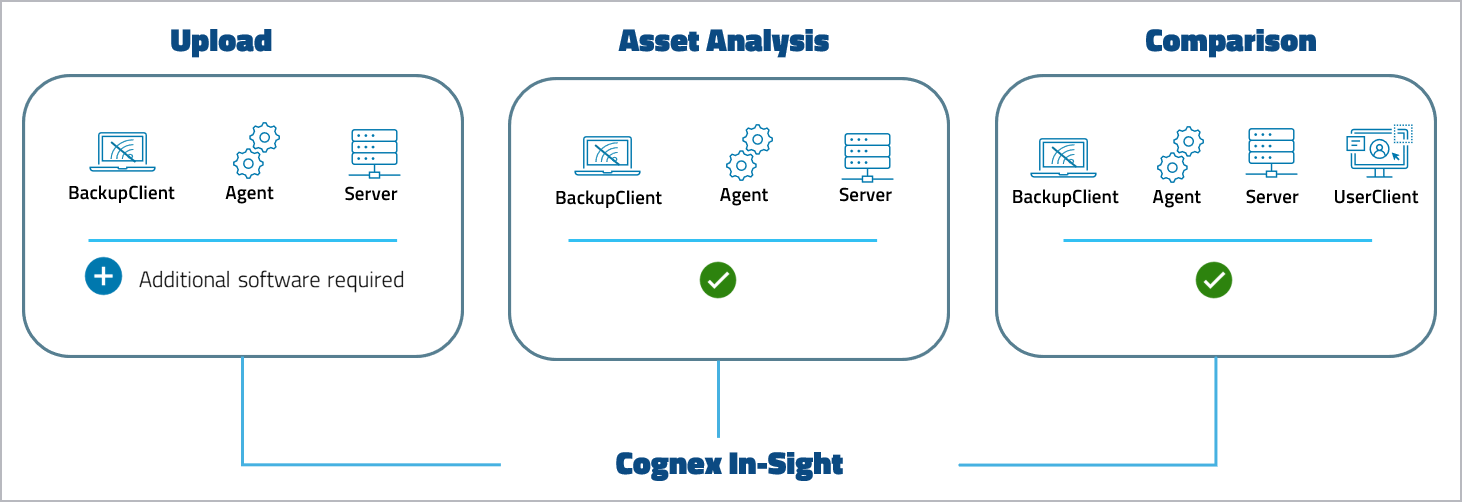

Device support level
Key features and functions
| Version | Backup | ||
|---|---|---|---|
| Project lifecycle |  | Upload strategy: Automated upload | |
| Compare: SmartCompare |  | Compare: SmartCompare | |
| Restorable version | | Restorable backup | |
Software version compatibility
| Cognex In-Sight series * | From octoplant version |
|---|---|
| 2000, 5000/5700, 7000, 8000, 9000, 9902L | 101 |
* All files that are accessible via FTP
Info
Starting with octoplant version 101.2.x, Microsoft Windows 8.1 and older versions are no longer supported.
If you are using older Windows versions, consider the following limitations: Options for supporting old operating systems

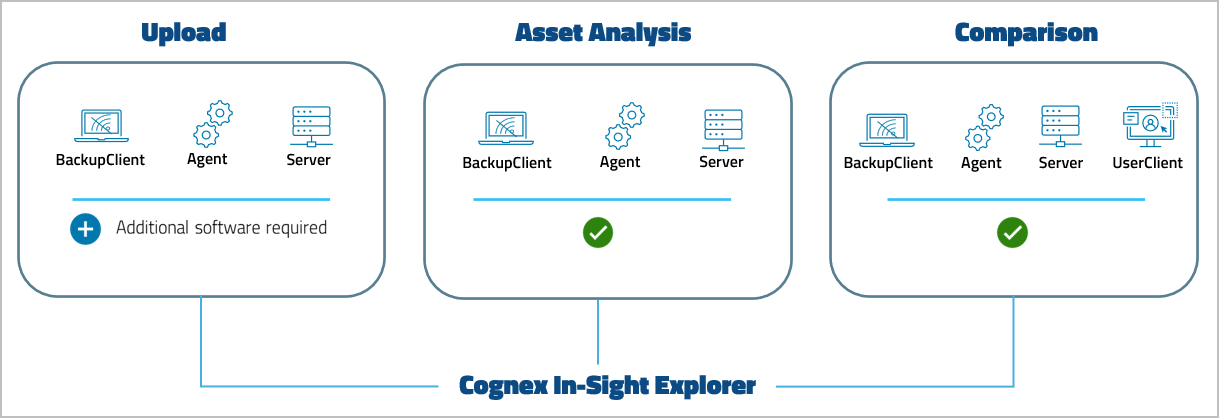

Cognex In-Sight SDK
It is also possible to carry out an upload using Cognex In-Sight SDK.
If either the sensor is offline or the user has the appropriate rights to run a job online, it is possible to create a backup of the running job (the one on the device).
Prerequisite: Cognex In-Sight Explorer/SDK 5.8.0 or a newer version must be installed on the server or agent.
The sensors In-Sight Micro 1020, In-Sight 2000 series, In-Sight 7010, 7020, 7230, 7430 and 7432 are not supported by the SDK.
Configuration
To get the basic workflow for integrating the device, open General workflow.
Device-specific settings for this device, such as job configuration, can be found on the following pages:
