FANUC CNC
octoplant supports the management of FANUC CNC projects and enables the automatic creation of backups as well as the cyclical monitoring of controllers.
Device support level

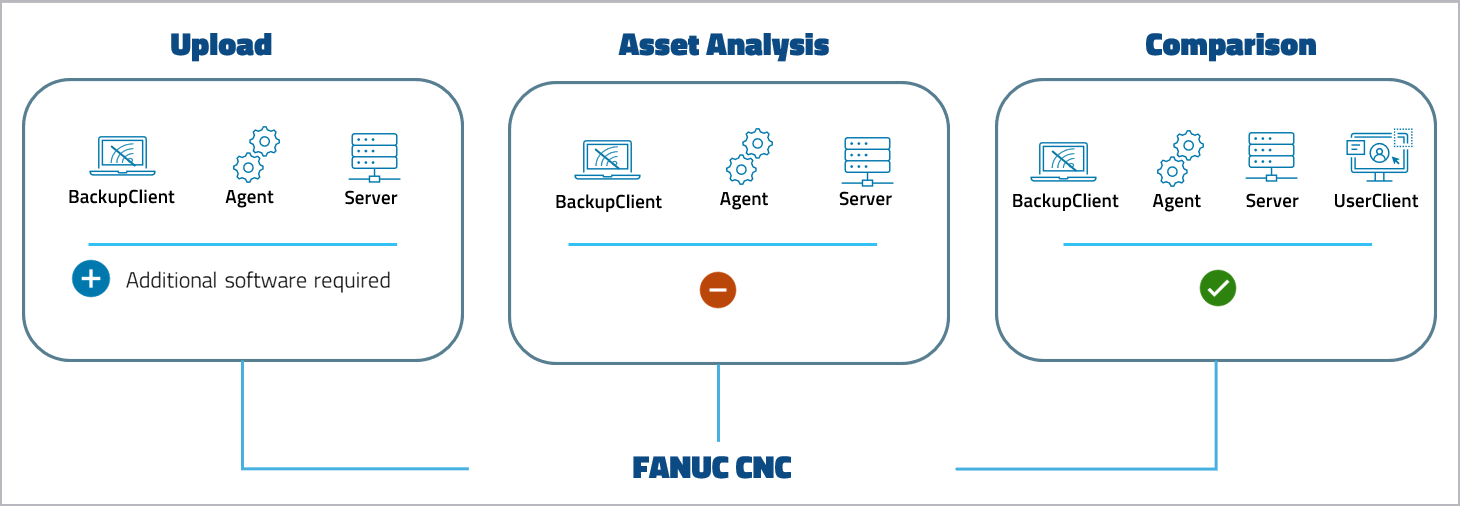

Key features and functions
| Version | Backup | ||
|---|---|---|---|
| Project lifecycle |  | Upload strategy: Automated upload | |
| Compare: SmartCompare | | Compare: SmartCompare | |
| Restorable version | | Restorable backup | |
Software version compatibility
| FANUC Ladder III | From octoplant version |
|---|---|
| V7.7*-V7.9 | 101 |
| 9.6 | 105 |
*Intermediate versions are usually tested and supported.
Hardware compatibility
| Supported hardware (CNC series) | Comparison | Backup |
|---|---|---|
| CNC 0i | ✓ | ✓ |
| CNC 16i/18i | ✓ | ✓ |
| CNC 30i | ✓ | ✓ |
| CNC 31i | ✓ | ✓ |
| CNC 32i | ✓ | ✓ |
| CNC 35i | ✓ | ✓ |
Requirements
- To carry out uploads, a compatible version of the editor must be installed on the same computer on which the server or an agent is running.
Configuration
To get the basic workflow for integrating the device, open General workflow.
Device-specific settings for this device, such as job configuration, can be found on the following pages:
