Configuring the comparison for Hirschmann Switches

In Hirschmann projects, you can exclude defined tags and properties from the comparison.

You can only execute the comparison configuration if a corresponding file (XML, ASCII or both) has already been stored in the component. The exact file extension depends on the component type comparator configuration.

  1. Open the Comparison configuration dialog.

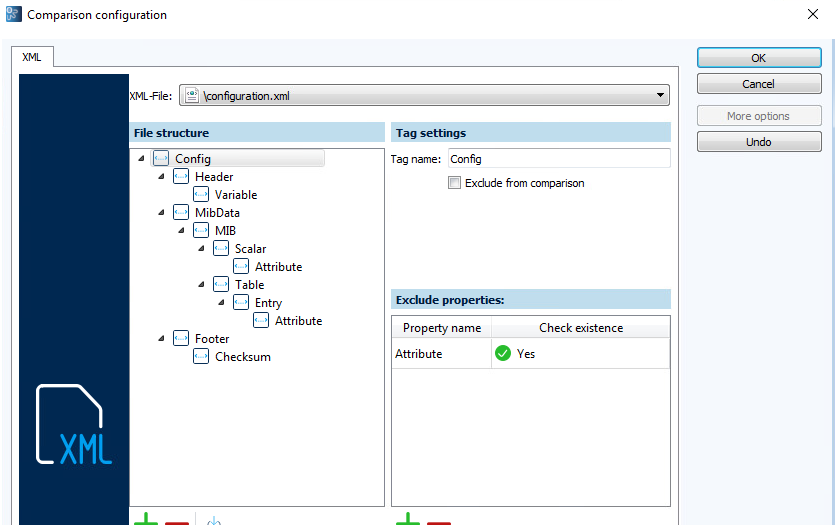

    Figure: Comparison configuration dialog

  2. If there are several projects in a component, select the corresponding project from the dropdown menu.

  3. Under File structure, select the green "+" Icon_plus.PNG or right-click in the empty field.

    The Add tag dialog opens.

  4. Under Tag settings, enter the Tag name and select the Exclude from comparison checkbox. If you want to enter properties under Exclude properties:, clear the checkbox.

  5. Select OK to confirm.

  6. Select the Icon_import.PNG button to import the XML file structure. Please note that importing the XML file structure deletes the current configuration.

  7. Save the configuration with Apply.
