KISTLER DMF-P and maXYmos process monitors

octoplant supports the management of KISTLER process monitors and enables automatic creation of backups and cyclical monitoring of the devices.

Device support level

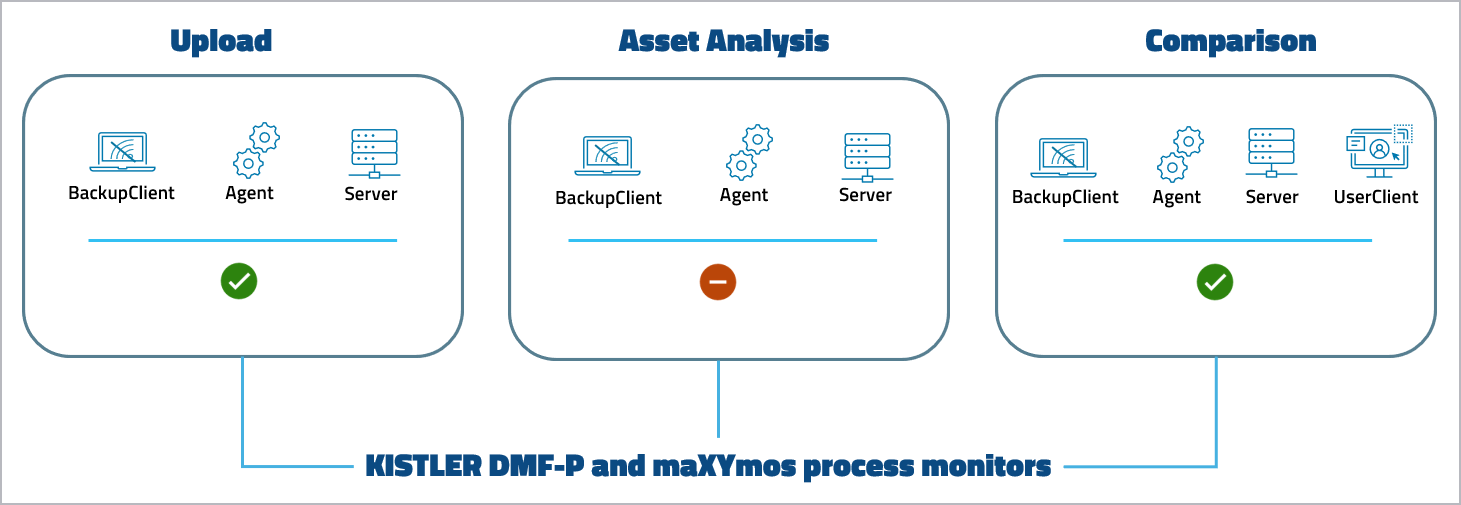

Figure: Device support level KISTLER DMF-P and maXYmos process monitors

Key features and functions

Version Backup
Project lifecycle Icon checked Upload strategy: Automated upload Icon checked
Compare: SmartCompare Icon unchecked Compare: SmartCompare Icon unchecked
Restorable version Icon checked Restorable backup Icon checked

Software version compatibility

KISTLER process monitors From octoplant version
DMF-P A300 NCF 101
DMF-P A400 101
maXYmos TL/NC 101

Info

Starting with octoplant version 101.2.x, Microsoft Windows 8.1 and older versions are no longer supported.

If you are using older Windows versions, consider the following limitations: Options for supporting old operating systems

Requirements

  • To carry out upload for MF-P A300 NCF and DMF-P A400, the Sicherungstool.exe tool from Kistler is used. It is supplied as standard .

Related topics

To get the basic workflow for integrating the device, open General workflow.

Device-specific settings for this device, such as job configuration, can be found on the following pages:
