KUKA KR C2 robots
octoplant supports the management of KUKA KR C2 robot projects and enables the automatic creation of backups as well as the cyclical monitoring of the robots.
Device support level
Key features and functions
| Version | Backup | ||
|---|---|---|---|
| Project lifecycle |  | Upload strategy: Automated upload | |
| Compare: SmartCompare | | Compare: SmartCompare | |
| Restorable version | | Restorable backup | |
Software version compatibility
| KUKA Robot | From octoplant version |
|---|---|
| KR C2 | 101 |
Info
Starting with octoplant version 101.2.x, Microsoft Windows 8.1 and older versions are no longer supported.
If you are using older Windows versions, consider the following limitations: Options for supporting old operating systems

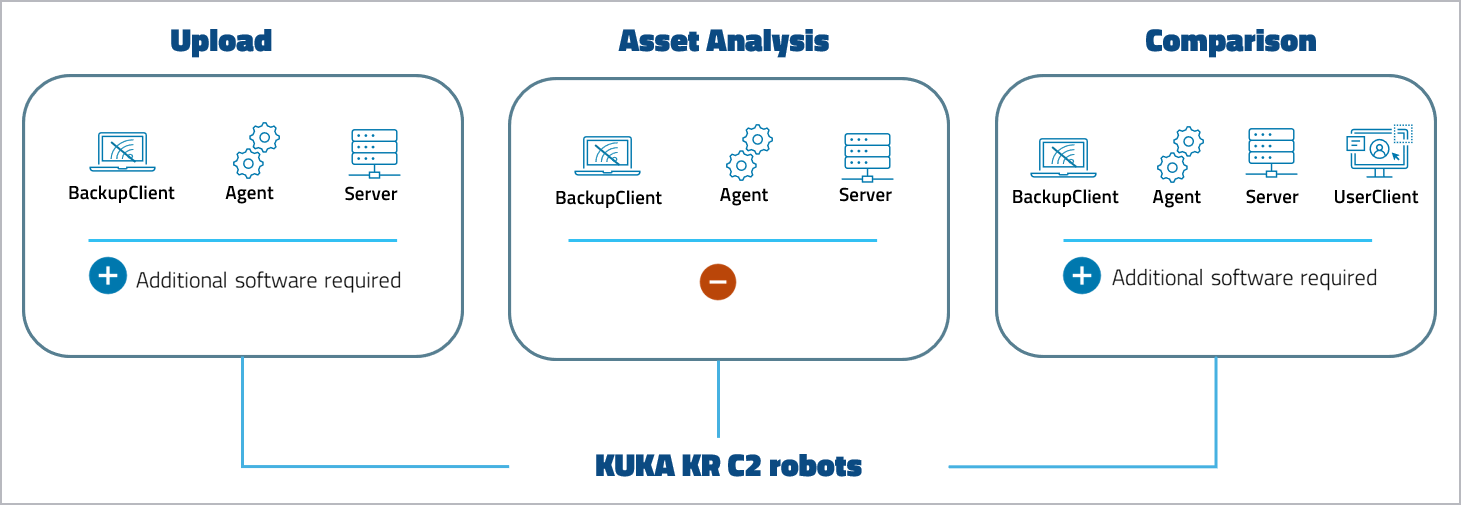

Requirements
- network connectivity must be installed and licensed on the robot.
- A user account with read and write access to the backup directory and to the trigger directory of network connectivity must be available on the robot.
- To carry out uploads and comparisons, a compatible version of the editor must be installed on the same computer on which the server or an agent is running.
Related topics
To get the basic workflow for integrating the device, open General workflow.
Device-specific settings for this device, such as job configuration, can be found on the following pages:
