MITSUBISHI MELSOFT GX Works3

MELSOFT GX Works3 is the development environment for FX, L and Q series controllers. It is part of the iQ Works Suite, but can also be purchased and used separately.

octoplant it supports both GX Works2 and GX Works3.

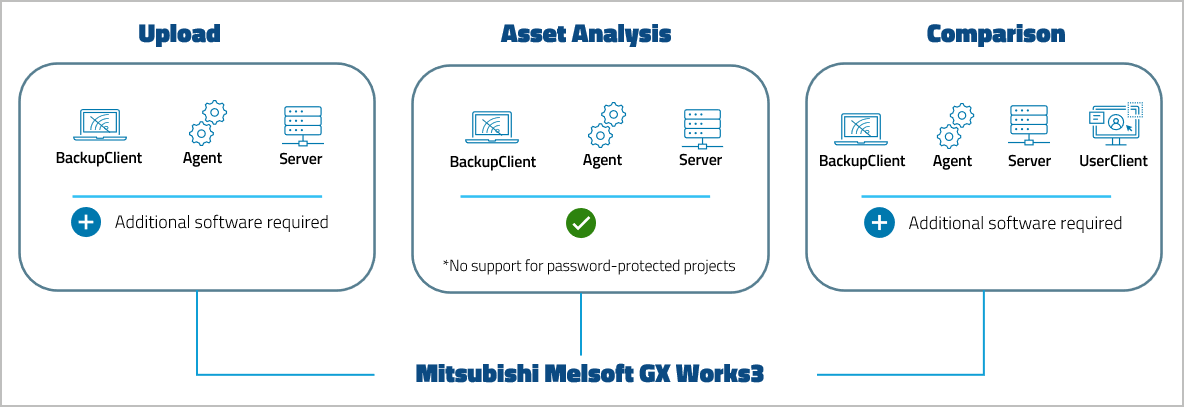

Device support level

Figure: Device Support Level MITSUBISHI MELSOFT GX Works3

Key features

Figure: MITSUBISHI MELSOFT GX Works3 Key features

Workflow

Figure: Workflow MITSUBISHI MELSOFT GX Works3

Supported versions

From version MELSOFT GX Works3
octoplant 101 ✓

Supported editors

  • All editors from version 1.057K up to version 1.081K

Requirements

  • To carry out uploads and comparisons, a compatible version of the editor must be installed on the same computer on which the server or an agent is running.
  • Agents must be executed as an application (not as a service).

Configuration

To get the basic workflow for intergrating the device, open General workflow.

Device-specific settings for this device, such as job configuration, can be found on the following pages:
