Omron CX-Programmer
octoplant supports the Omron CX-Programmer software natively.
Device support level
Key features and functions
| Version | Backup | ||
|---|---|---|---|
| Project lifecycle |  | Upload strategy: Automated upload | |
| Compare: SmartCompare | | Compare: SmartCompare | |
| Restorable version | | Restorable backup | |
octoplant can compare Omron CX-Programmer project files (*.cxp) and text project files (*.cxt) both between different versions and between versions and backups.
Software version compatibility
| Omron CX-Programmer | From octoplant version |
|---|---|
| Omron CJ1M | 101 |
| Omron CJ2M | 101 |
Info
Starting with octoplant version 101.2.x, Microsoft Windows 8.1 and older versions are no longer supported.
If you are using older Windows versions, consider the following limitations: Options for supporting old operating systems

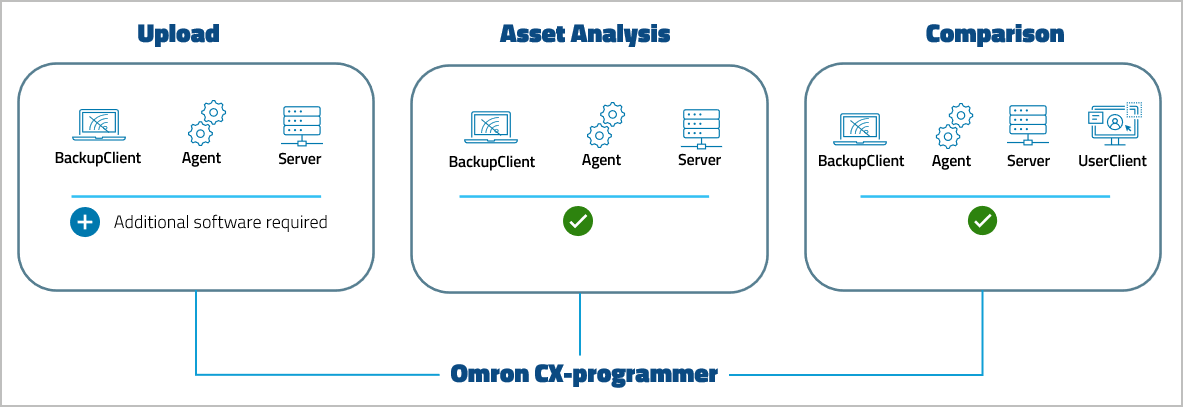

Requirements
-
To perform uploads, ensure that a compatible version of the editor is installed on the same machine where the server or an agent is running.
-
To perform uploads, either the agent or the VDog MasterService (depending on which is in use) must be launched as an application, under the following conditions:
- A user must be logged in.
- The screen saver must remain unlocked.
- This setup is necessary for automating the CX-Programmer editor.
For detailed instructions, see Starting agents and VDog MasterService as applications
Configuration
To get the basic workflow for integrating the device, open General workflow.
Device-specific settings for this device, such as job configuration, can be found on the following pages:
