Omron Sysmac Studio
octoplant supports the Omron Sysmac Studio software natively.
Device support level
Key features and functions
| Version | Backup | ||
|---|---|---|---|
| Project lifecycle |  | Upload strategy: Automated upload | |
| Compare: SmartCompare | | Compare: SmartCompare | |
| Restorable version | | Restorable backup | |
Software version compatibility
| Omron Sysmac Studio | From octoplant version |
|---|---|
| Versions 1.11 to 1.45 | 101 |

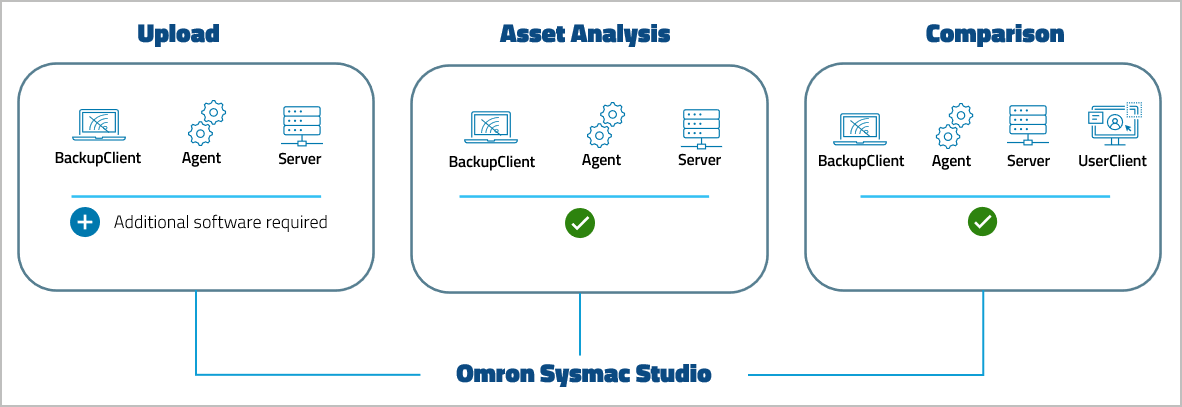

Requirements
-
To perform uploads, ensure that a compatible version of the editor is installed on the same machine where the server or an agent is running.
-
To perform uploads, either the agent or the VDog MasterService (whichever is in use for this device) must be launch as an application, under the following conditions:
- The Upload Agent must be installed on the same system as Omron Sysmac Studio.
- The agent must run with sufficient user privileges.
- Running the agent in an interactive user session is recommended for optimal reliability.
For detailed instructions, see Starting agents and VDog MasterService as applications
Info
To enable uploads in Sysmac Studio, the file SysmacStudio.exe.config must contain the line <add key="WcfServiceEnable" value="True" />. SysmacStudio.exe.config is contained in the OMRON\Sysmac Studio folder in either the Program Files or Program Files(x86) folder, depending on operating system.
Configuration
To get the basic workflow for integrating the device, open General workflow.
Device-specific settings for this device, such as job configuration, can be found on the following pages:
