Schneider EcoStruxure Control Expert

Schneider EcoStruxure Control Expert is the development environment for the Modicon M340, M580, Premium, Momentum and Quantum controllers from Schneider Electric SE.

Info

The EcoStruxure Control Expert programming software is available from Schneider firmware version 14. Before that, it was the programming software Schneider Unity.

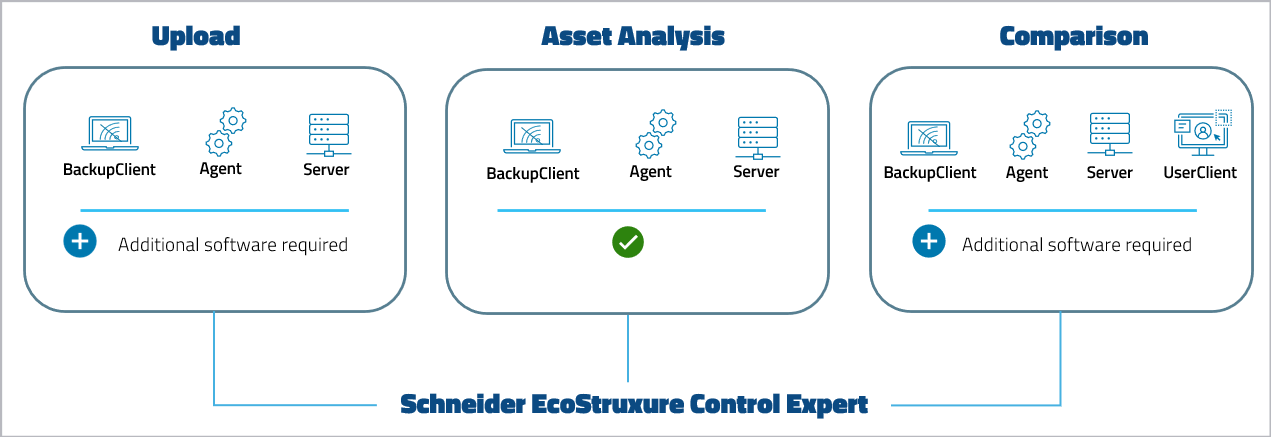

Device support level

Figure: Device support level Schneider EcoStruxure Control Expert

Key features and functions

Version		Backup
Project lifecycle		Upload strategy: Automated upload
Compare: SmartCompare		Compare: SmartCompare
Restorable version		Restorable backup

Software version compatibility

Schneider EcoStruxure Control Expert	From octoplant version
14.0, 14.1	101
15.0, 15.1	101
15.2	101.1
15.3	101.3.2
16	101.4.1
16.2	105

Info

Starting with octoplant version 101.2.x, Microsoft Windows 8.1 and older versions are no longer supported.

If you are using older Windows versions, consider the following limitations: Options for supporting old operating systems

Info

There’s a known issue with V15.0. In case the upload fails with one of the following error messages, we recommand to upgrade the project to a newer version.

The project file is not compatible [60102] Error calling a COM method [raw_OpenApplicationWithPServerBrokerContext][HR: 0x80080005][---] [80080005]

Requirements

To carry out uploads and comparisons, a compatible version of the editor must be installed on the same computer on which the server or an agent is running.
The version of the local editor must correspond to the version of the editor with which the project was created.
To carry out uploads with multiple versions of Schneider EcoStruxure Control Expert, Upload and Compare agents are required.

Related topics

To get the basic workflow for integrating the device, open General workflow.

Device-specific settings for this device, such as job configuration, can be found on the following pages:
