Schneider EcoStruxure Machine Expert
octoplant supports the management of Schneider EcoStruxure Machine Expert projects and enables the cyclical monitoring of devices configured with this development environment.
Info
The EcoStruxure Machine Expert programming software is based on CODESYS. There is a separate component type for Schneider EcoStruxure Machine Expert in octoplant, but upload and comparison are carried out via CODESYS.
Device support level
Key features and functions
| Version | Backup | ||
|---|---|---|---|
| Project lifecycle |  | Upload strategy: Automated upload | |
| Compare: SmartCompare | | Compare: SmartCompare | |
| Restorable version | | Restorable backup |  |
Software version compatibility
| Schneider EcoStruxure Machine Expert | From octoplant version |
|---|---|
| V2.0 | 101.2 |
| V2.1 | 101.2 |
Info
Starting with octoplant version 101.2.x, Microsoft Windows 8.1 and older versions are no longer supported.
If you are using older Windows versions, consider the following limitations: Options for supporting old operating systems

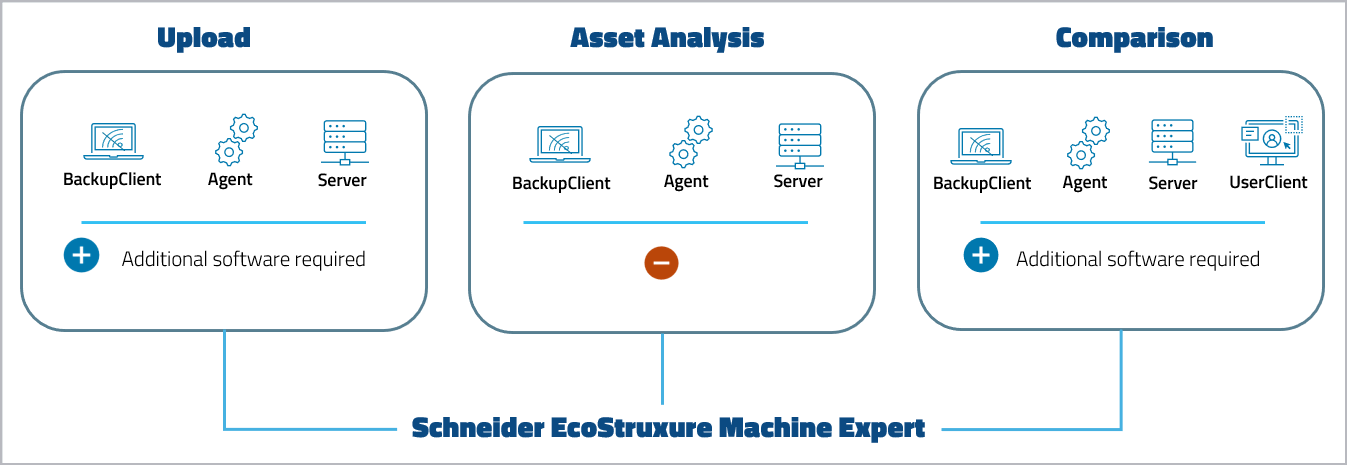

Requirements
- To carry out uploads and comparisons, a compatible version of the editor must be installed on the same computer on which the server or an agent is running.
Related topics
To get the basic workflow for integrating the device, open General workflow.
Device-specific settings for this device, such as job configuration, can be found on the following pages:
