Schneider Unity Pro
Schneider Unity Pro is the development environment for the Modicon M340, M580, Premium, Momentum and Quantum controllers from Schneider Electric SA.
Info
Schneider Unity Pro is called EcoStruxure Control Expert as of Schneider firmware V14.
Device Support Level
Key features
Other features
- Asset inventory support (editor installation required)
Workflow
Supported versions
| Schneider Unity Pro firmware version | 4.0 | 4.1 | 5.0 | 6.0 | 7.0 | 8.0 | 8.1 | 10.0 | 11.0 | 11.1 | 12 | 13 | 13.1 | 14 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| octoplant 101 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |

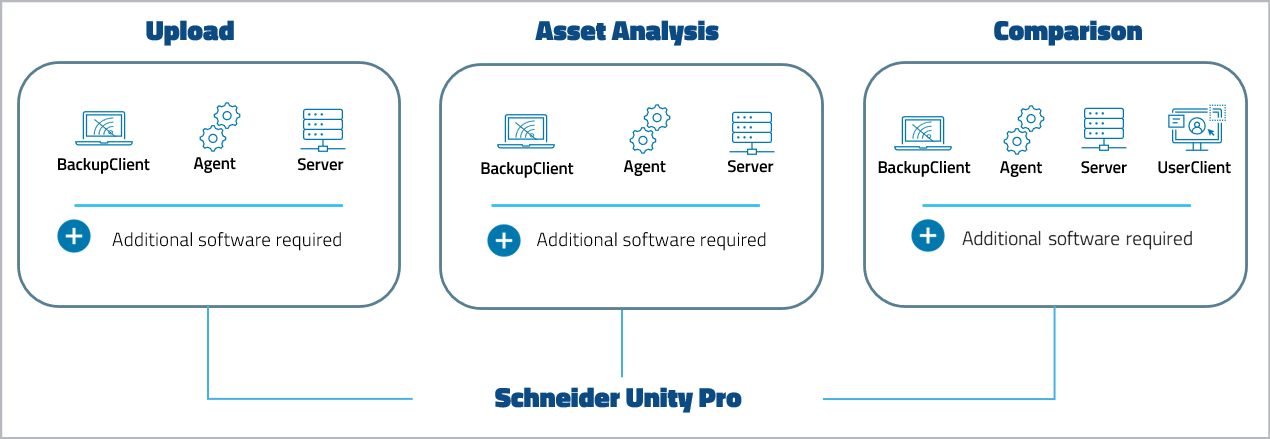

Requirements
- To carry out uploads and comparisons, a compatible version of the editor must be installed on the same computer on which the server or an agent is running.
- To carry out uploads for for Schneider Unity Pro and use multiple versions of Schneider Unity Pro, you must use Upload and Compare agents.
- If you update your editor from an earlier version to version 14 or higher, the component type of the octoplant component must be adapted to Schneider EcoStruxure Control Expert.
Configuration
To get the basic workflow for intergrating the device, open General workflow.
Device-specific settings for this device, such as job configuration, can be found on the following pages:
- Using the Security editor
- Configuring the comparison
- Configuring jobs
- Configuring a project for restore
- Controllers with different versions
- Working with STA files instead of STU files
