Siemens SIMATIC STEP 5

octoplant supports the management of Siemens SIMATIC STEP 5 projects and enables the cyclical monitoring of devices that have been configured with this development environment. In addition, all files of the offline version, including their contents, can be backed up.

Device support level

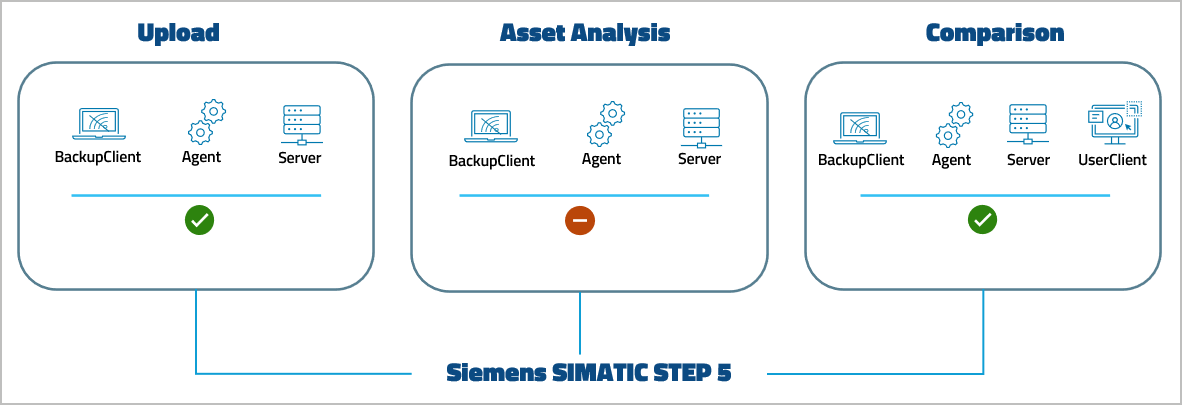

Figure: Device support level Siemens SIMATIC STEP 5

Key features and functions

Version Backup
Project lifecycle Icon checked Upload strategy: Automated upload Icon checked
Compare: SmartCompare Icon checked Compare: SmartCompare Icon checked
Restorable version Icon checked Restorable backup Icon checked

Software version compatibility

SIMATIC S5 Version From octoplant version
V 6.X 101

Hardware compatibility

  • All controllers supported by Siemens Simatic S5

Configuration

To get the basic workflow for integrating the device, open General workflow.

Device-specific settings for this device, such as job configuration, can be found on the following pages:

FAQ

Why does the versioning of an S5 for Windows project fail with the error message #30401 or #31102?

  • If you are working with the S5 Editor for Windows (Version 5.14), path specifications must not contain spaces. Make sure that this is the case and repeat the process.

  • S5 for Windows projects that contain S7 Blocks cannot be converted by octoplant.
