Siemens SIMATIC STEP 7

octoplant supports the management of Siemens SIMATIC STEP 7 projects and enables the cyclical monitoring of devices that have been configured with this development environment. In addition to this, all files of the offline version, including their content, can be backed up.

Device support level

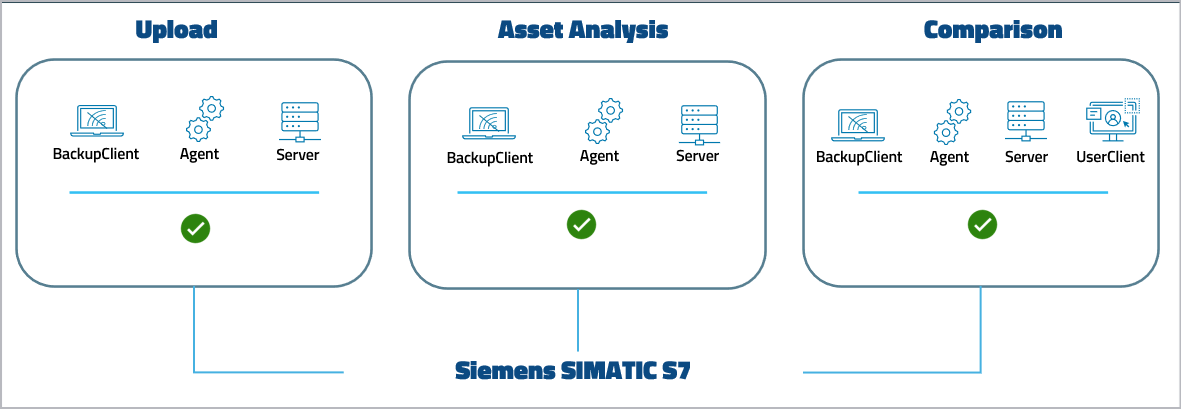

Figure: Device support level Siemens SIMATIC STEP 7

Key features and functions

Version Backup
Project lifecycle Icon checked Upload strategy: Automated upload Icon checked
Compare: SmartCompare Icon checked Compare: SmartCompare Icon checked
Restorable version Icon checked Restorable backup Icon checked

Software version compatibility

SIMATIC S7 From octoplant version
up to V5.5 101
V5.6 101
V5.7 101
SIMATIC PCS 7 From octoplant version
up to V8.0 SP1 101
V8.2 101
V9.0, V9.0 SP1, V9.0 SP2, V9.0 SP3 101

Info

Starting with octoplant version 101.2.x, Microsoft Windows 8.1 and older versions are no longer supported.

If you are using older Windows versions, consider the following limitations: Options for supporting old operating systems

FAQ

Why does the creation of archives in the SIMATIC Manager fail?

Check whether the name of the component to be archived contains spaces. If this is the case, there are two options:

  • Remove the blank characters from the name of the affected component.
  • Create a subdirectory without blank characters in the affected component.

Related topics

To get the basic workflow for integrating the device, open General workflow.

Device-specific settings for this device, such as job configuration, can be found on the following pages:
