Siemens SINUMERIK Operate
octoplant supports the automatic creation of backups and the cyclic monitoring of SINUMERIK Operate devices.

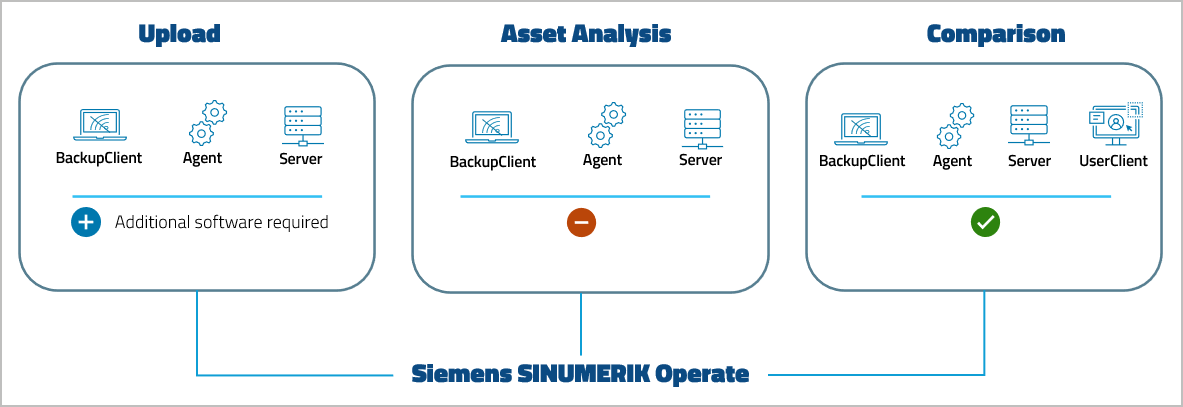

Device support level
Key features and functions
| Version | Backup | ||
|---|---|---|---|
| Project lifecycle |  | Upload strategy: Automated upload | |
| Compare: SmartCompare | | Compare: SmartCompare | |
| Restorable version | | Restorable backup | |
Software version compatibility
| SINUMERIK 840D Operate | From octoplant version |
|---|---|
| 2.7 | 101 |
| 4.5 | 101 |
| 4.7 | 101 |
| 4.8 | 101 |
| 4.9 | 101.1 |
Requirements
- The SINUMERIK Operate plugin must be installed on the HMI (NCU or PCU).
- To carry out an S7 comparison with the backup, the corresponding S7 project has to be included into the same SINUMERIK 840D component.
-
To carry out a Sinumerik CNC upload, a Connect my machine license from Siemens is required.
You can obtain the license directly from Siemens at
mcmts.software.plm@siemens.com. If you request Connect my machine for octoplant, you will receive a discount of up to 30%.
Configuration
To get the basic workflow for integrating the device, open General workflow.
Device-specific settings for this device, such as job configuration, can be found on the following pages:
