Siemens SINUMERIK ONE
octoplant supports the automatic creation of backups and the cyclic monitoring of SINUMERIK ONE devices.
Device support level
Key features and functions
| Version | Backup | ||
|---|---|---|---|
| Project lifecycle |  | Upload strategy: Automated upload | |
| Compare: SmartCompare |  | Compare: SmartCompare | |
| Restorable version | | Restorable backup | |
Software version compatibility
| SINUMERIK ONE | From octoplant version |
|---|---|
| 4.95/6.15 | 101.1 |

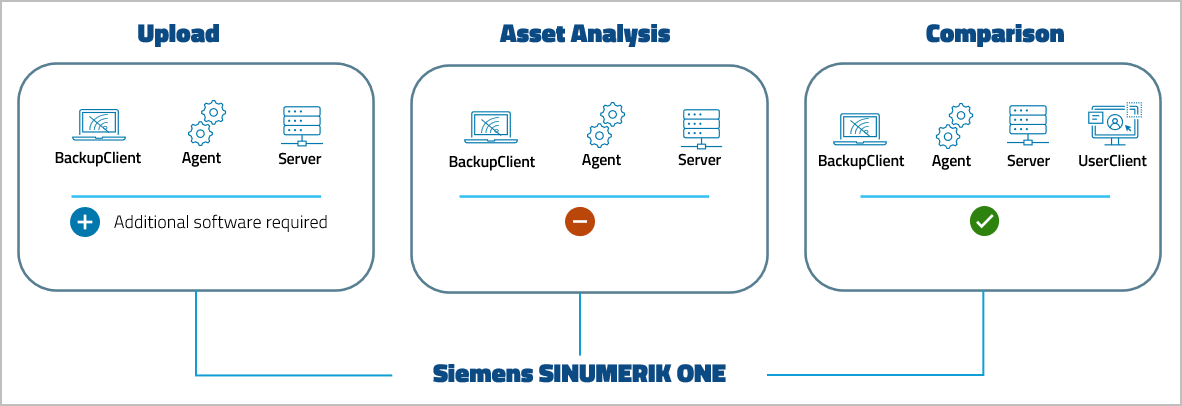

Requirements
- To carry out uploads of a PLC (TIA Portal Station Upload), a compatible version of the editor must be installed on the same computer on which the server or an agent is running.
-
To carry out a Sinumerik CNC upload, a Connect my machine license from Siemens is required.
You can obtain the license directly from Siemens at
mcmts.software.plm@siemens.com. If you request Connect my machine for octoplant, you will receive a discount of up to 30%.
Supported plugins with access level
| From Version | 6.21-6.25 |
|---|---|
| octoplant 105.0 | ✓ |
Configuration
To get the basic workflow for integrating the device, open General workflow.
Device-specific settings for this device, such as job configuration, can be found on the following pages:
Related topics
