Siemens TIA Portal videos

Important general requirements (Jobs will fail if they are not fulfilled)

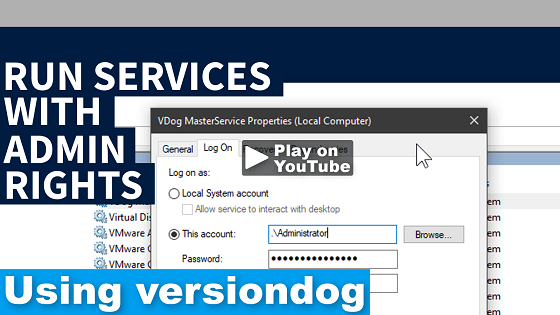

Recommended for all upload and compare jobs

If you receive information from AMDT Support or in versiondogINFO that it is required for your device type or environment that the versiondog Services are executed with administrative rights, you can set this here.

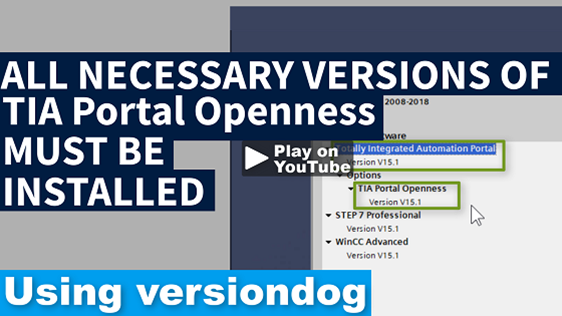

Install TIA Portal Openness for jobs

From Version 15.1, TIA Portal Openness is preset when you install TIA Portal. This was not the case with previous versions. Jobs can only be executed if the corresponding version of Openness is installed for each TIA Portal version used. This is how you can find out the current status and find the installer for missing versions.

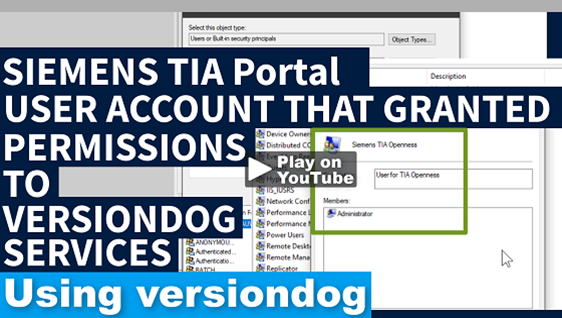

Add your user account to two user groups

To successfully run TIA Portal Jobs, make sure that the user account you specified when checking the user rights to run the versiondogservices is a member of the following two groups on the system on which uploads are to be performed: Administrators and Siemens TIA Openness.

Checksum comparison - for all S7 PLCs with TIA Portal 13 SP1 or higher

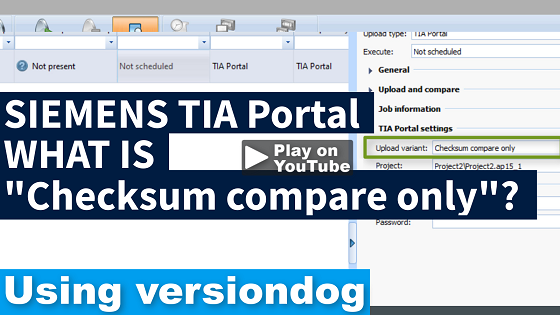

Checksum comparison - a simple check for PLC programs

The upload type "Checksum comparison only" for TIA Portal Jobs in versiondogcan be misunderstood. Learn here what it means exactly to better decide if it is the best option for you.

Station upload - the recommended upload option for S7-1500 PLCs with TIA Portal 15.1 or higher

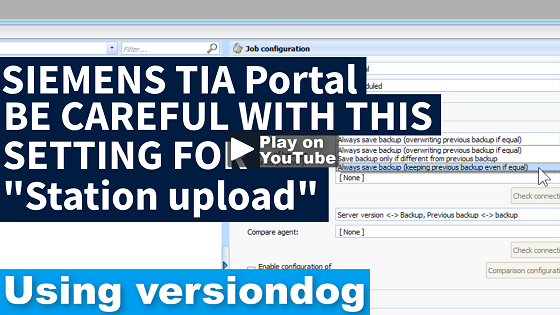

Station upload for restorable backups with actual values

If you use the upload type Station Upload and want to create a series of restorable backups with current values, there is a setting in the job configuration that you need to be careful with. (Otherwise each new backup, where only the current values have changed, will overwrite the previous one)

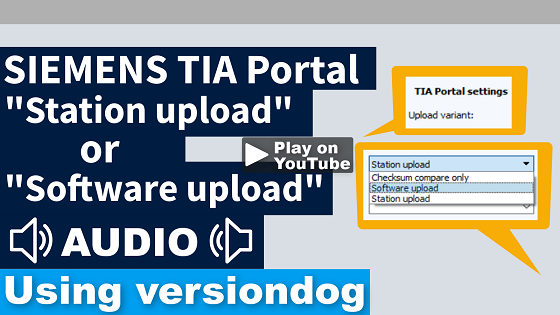

Which upload type is recommended for TIA Portal?

Upload type Station Upload is recommended if you have S7-1500 PLCs and use TIA Portal from version 15.1 (15.1, not 15.0). If you have S7-300/400/1200 PLCs or use an earlier TIA Portal Version, software upload is the alternative.

Software upload

The only option if you want a restorable Backup in the following cases

• The jobs are for S7-300/400/1200 PLCs (you need TIA Portal 13 SP1 or higher)
• The jobs are for S7-1500 PLCs and you have TIA Portal 13 SP1 or higher, but a previous version of 15.1.

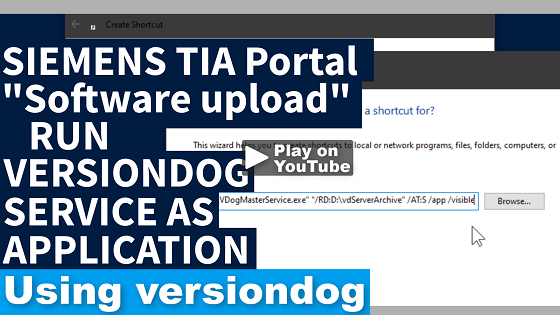

An important point when configuring Software Upload Jobs

Tia Portal Jobs with the upload variant software upload fail if the versiondog service has not been started as an application. Fortunately, this can be configured quickly and easily. This video guides you step by step through the configuration and shows you how to avoid possible errors.

A stable solution for TIA Portal with versiondogSoftware Upload

AMDT recommends using an versiondog agent and a corresponding virtual machine for TIA Portal Jobs with the Upload type software upload. Remove the screen lock and screen saver settings.

A workaround solution for TIA Portal with versiondogSoftware Upload

Here is a workaround if you want to use the Upload type Software Upload for TIA Portal Jobs in versiondog but do not want to purchase an versiondog Agent. This audio explains important points to make this solution work reliably.
